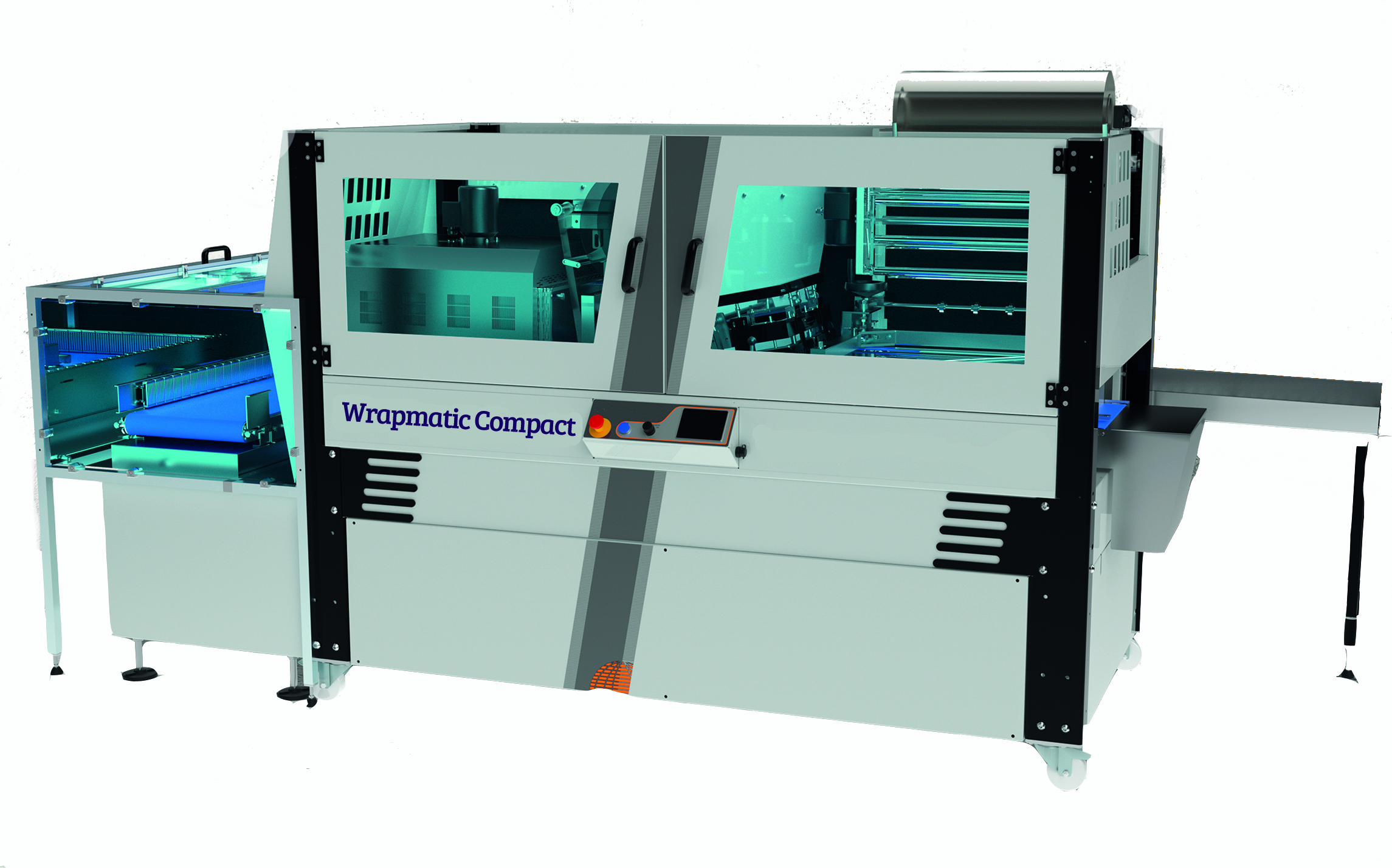

WrapMatic Compact Shrink Wrapping Machine
Product Information
- Power: 3ph 400VAC
- Machine Dimensions: 2390mm x 1190mm x 1680mm
- Max Product Dimensions: 400mm x 420mm x 120mm
- Maximum Roll Dimensions: 300mm
- Maximum Reel Strip Dimensions: 600mm wide
- Working Plate Height: 870mm height
- Machine Weight (net/gross): 763/813kg
Product Specification

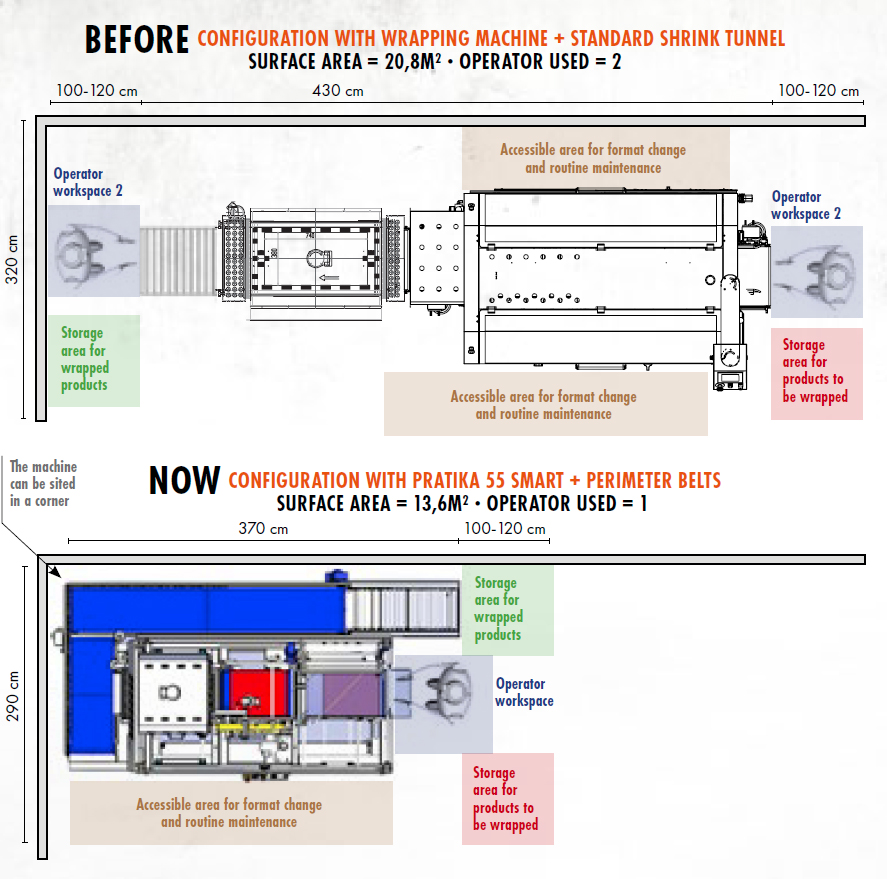

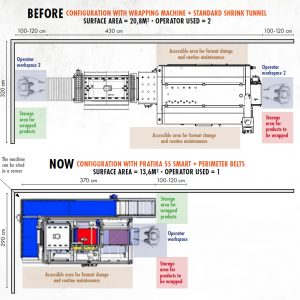

The fully automatic WrapMatic Compact shrink wrapping machine is a completely innovative automatic wrapping machine. The L-sealing system provides an all round centre seal. It comes with a built in shrink tunnel and a ‘come back’ conveyor, ideal to use for a single operator. Up to 1,200 pieces can be wrapped per hour dependent on film and product size. The compact system is an ideal shrink wrapping system when space is limited.
Products up to 120mm in height, 420mm in length and 400mm width can be wrapped. A great advantage of this system is that it doesn’t require pneumatic connection and works only with electrical power supply. The benefit of this includes reduced maintenance requirements and noise levels as well as improved speed, productivity and sealing precision.
Key Features:

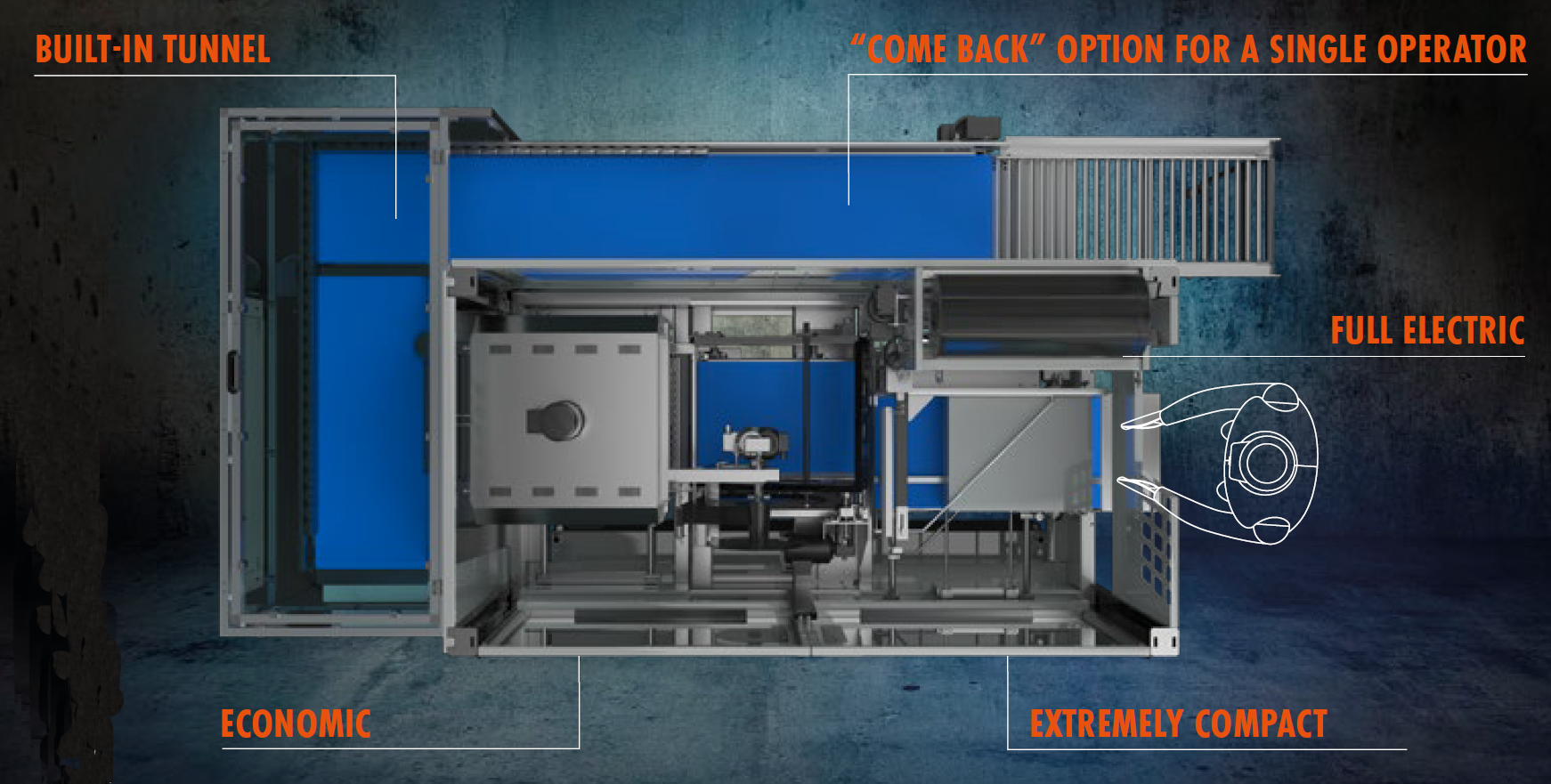

- Automatic compact shrink wrapping machine with built-in tunnel
- Completely electrical powered
- Schneider Electric PLC & Brushless Servo Motor
- Only requires one operator to use
- 10-language touch screen display
- Micro-puncher kit with adjustable tensioning film
- Possibility to pack single or multiple packages
- Anti-static in-feed and outfeed belts
- Height adjustable triangle and sealing bar
- Machine on wheels and adjustable feet
Video
