Kirk Rudy Servo Card Attaching System
Product Information
Product Specification:
- Dimensions: 72″ L, 60″ H, 45″ W
- Power: Base: 120VAC (15amp, 1 Ø), Attaching Head: 220VAC, (10amp, 1 Ø), Hot Melt Glue: 120VAC (20amp, 1 Ø)
- Production Rate: Max: 400 ft/min
- Min Stock Size: 3″ W x 5″ L
- Max Stock Size: 17″ W x 14″ L
- Min Stock Thickness: single sheet
- Max Stock Thickness: 0.06″
Categories: Packaging & RFID Equipment, Card Attaching Systems
Product Specification:

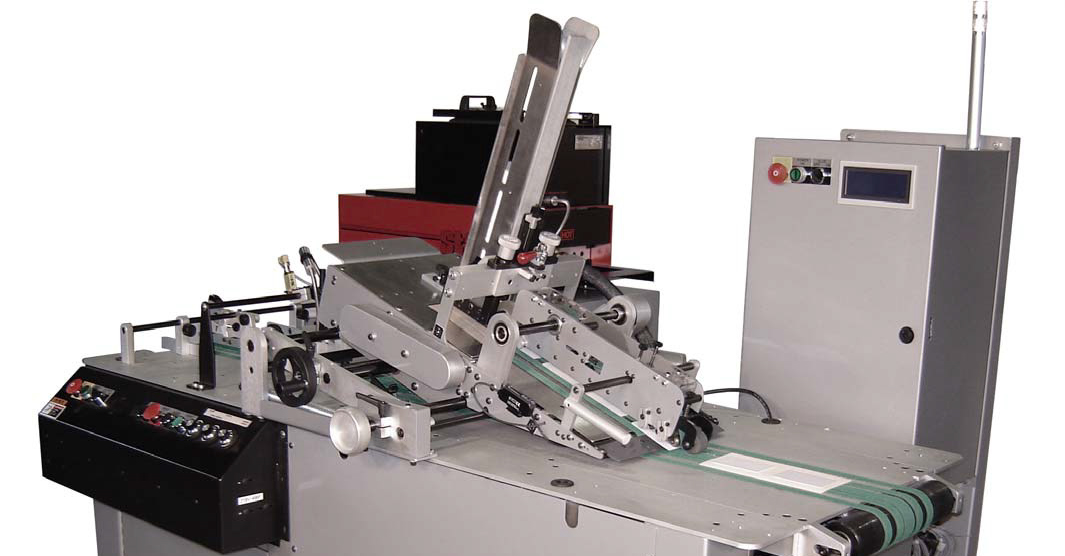

The Servo card attaching system from renowned manufacturer Kirk-Rudy accurately attaches plastic cards as well as product up to 28cm wide onto a wide variety of products.
High-speed, accurate placement is achieved using a servo-driven friction feeder. Vertical and side to side adjustments of the friction feeder make setup quick and easy.
Key Features:
- Quick and easy setup
- High speed accuracy
- Placement of a wide variety of stock from plastic cards up to 22cm x 28cm sheets.
- Adjustment knobs quickly and accurately set feeder location and height
- Pivot the feeder upward and away from the transport table for jams or maintenance
- Make off-line, high production jobs easier with the optional KR Autoloader and feeder.
Video
Be the first to review “Kirk Rudy Servo Card Attaching System” Cancel reply
Send An Enquiry
Previous
Kirk Rudy Label Master
Related Products
Kirk-Rudy Ultrajet Data Printer
HOW DOES IT WORK?
The unique system uses fixed head ink cartridges, enabling it to print at constant speed whatever the content. The printer can be used with the latest Windows operating systems and may be supplied with a vacuum production base.
WHY DO I NEED IT?
The Ultrajet produces high quality print, quickly at low cost. As well as being used in-line with inserters and other mailing machines or off-line with an automatic feeder the printer can be used with a wide range of ink types.
The system is perfect for printing personalised text and graphics on to envelopes, flats, magazines, catalogues, books, inserts, folding mailing pieces and poly films
Kirk Rudy Label Master
Product Specification:
- Dimensions: 134.62cm, 85.09cm, 180.34cm
- Weight: 328.85kg
- Power: 120VAC (15amp, 1ph), 220VAC (10amp, 1ph)
- Max Operating Speeds: 30,000 pieces/hour (dependent on material)
- Label Head Product Capacity: Width: Min .25", Max 3"; Length: Min .75", Max 3"
- Base Product Capacity: Width: Min 1.25", Max 22", Length: Min 4", Max 17", Thickness: Min 0.007", Max 1"
Kirk Rudy RFID Tag Encoding System
Product Specifications:
- Dimensions: 556cm x 117cm x 84cm
- Shipping Weight: 1174kg
- Min Product Size: 25mm W x 50mm L
- Max Product Size: 102mm W x 152mm L
- Min Thickness: 0.18mm
- Max Thickness: 1.5mm
- Compressed Air: 80psi at 0.5cfm
- Operating Speeds: 600 ft/min (product dependent)
- Power: 110VAC (15amp, 1ph), 220VAC (40amp, 1ph)
M1C LabelMaker Printer
- Print Technology: Memjet Printhead Technology Single Memjet 215mm Five channels - Cyan, Magenta, Yellow, 2 x Black
- Print Speeds: 300mm/s at 1600 x 800dpi in normal mode 150mm/s at 1600 x 1600dpi in black & colour high quality mode
- Print Quality: Up to 1600dpi
- Printable Width: 215mm
- Media Formats: Roll or Fan Fold Media (Label)
- Media Dimensions: Min 50.8mm (w) x 25.4 (l)
- Media Thickness: Min 0.13mm - Max 0.33mm
- Media Sensing: Gap Sensing, Continuous Roll Handling
- Media Cutting: Integrated Cutter
- Reel to Reel: Optional Unwinder - Optional Re-winder
- Winder & Unwinder Core Diameter: 38.1mm & 76.2mm fixed
- Max Roll Size: 203.2mm
- Ink Cartridges: 250ml Each - Dye Based - Non Refillable
- Prints: Allows printing of text, graphics, logos and barcodes
- PC Interface & OS: USB, Ethernet, 10.100T - Windows
- Construction: Solid steel made in the United States
- Printer Dimensions: (H)279mm x(L)533mm x (W)533mm
- Machine Weight: Printer 32kgs
- Power: 230 VAC 50/60Hz
- Media Gap Specification: 3mm gap between labels 3mm black registration mark
- Full Bleed Media Gap Specification: 5mm gap (registration mark should be 3mm with 1mm margin on leading and trailing edges)
SALA Label Applicator Range
| Model | SALA50 | SALA100 | |
| Electrical power supply | 220 or 110 | 220 or 110 | |
| Frequency hz | v50/60 Hz | v50/60 Hz | |
| Speed | Variable from 0-30m | Variable from 0-30m | |
| Max. label width | 50mm | 100mm | Other version available for: |
| Min. label width | 10mm | 10mm | 140mm, 190mm, 230mm & 260mm |
| Max. label length | 500mm | 500mm | |
| Min. label length | 10mm | 10mm | |
| Min. internal reel diameter | 38mm (76 with adpater) | 38mm (76 with adapter) | |
| Max. external reel diameter | 300mm | 300mm | |
| Motor type | Stepper | Stepper |
LPS X-Jet Shrink Wrap Packaging Printer
- Print technology: Thermal Inkjet HP
- Address speed: Up to 30,000/hr - speeds are dependent on application
- Print quality: (dots per inch) High quality - 600 x 600 dpi Standard quality - 600 x 300 dpi Letter quality - 600 x 200 dpi Draft quality - 600 x 150 dpi
- Image area: As required up to 8” (200mm)
- Print Orientation: Normal and reverse
- Fonts: All True Type fonts available on PC
- Prints: Prints text, graphics, logos, and barcodes
- Software drivers: Windows
- Power: 230 VAC 50/60 Hz
LPS S1 Desktop Packaging Printer
- Print Technology: Memjet Printhead Technology
- Address Speed: Up To 7,500 A5 pieces per hour - (dependant on application)
- Print Quality (Dots Per Inch): Up to 1600 x 1600 dpi
- Material Size: Minimum (W)76mm x (L)107mm Maximum (W)267mmx (L)1016mm (or 362mm standard)
- The S1 can also be supplied with a small media kit: card from 50.8mm x 88.9mm can be printed on
- Material Thickness: Minimum: 0.1mm Maximum: 10 mm
- Image Area: (W)223mm x (L)1016mm
- Duty Cycle: 350,000 DL size pieces per month
- Feeder Capacity: Up to 500 single sheets
- Ink: Water-based ink. Five 250ml ink reservoirs (CMYKK)
- Ink Monitor: Viewable on 7” touchscreen display and S-Series toolbox
- Software: WindowsTM printer drivers for WindowsTM, 8,8.1,10, RIP available
- Diagnostics: Viewable on 7” touchscreen display and S-Series toolbox
- Firmware Update: Flash update through S-Series toolbox
- PC Interface: USB 2.0
- Network Interface: Ethernet port
- Counters: Permanent lifetime and job counter is viewable on 7” touchscreen display and S-Series toolbox
- Machine Dimensions: (W)536mm (L)991mm x (H)514mm
- Machine Weight: 43.9 kgs
- Power: 115-240 VAC 50/60 Hz
- Options: Conveyor/Stacker, Conveyor drop tray, Printer drop tray
